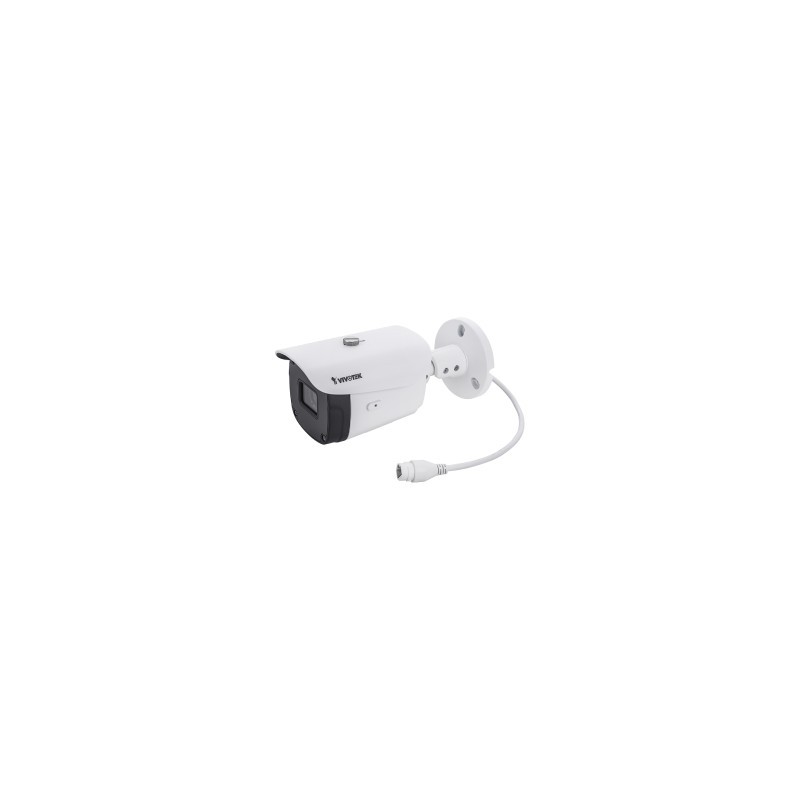

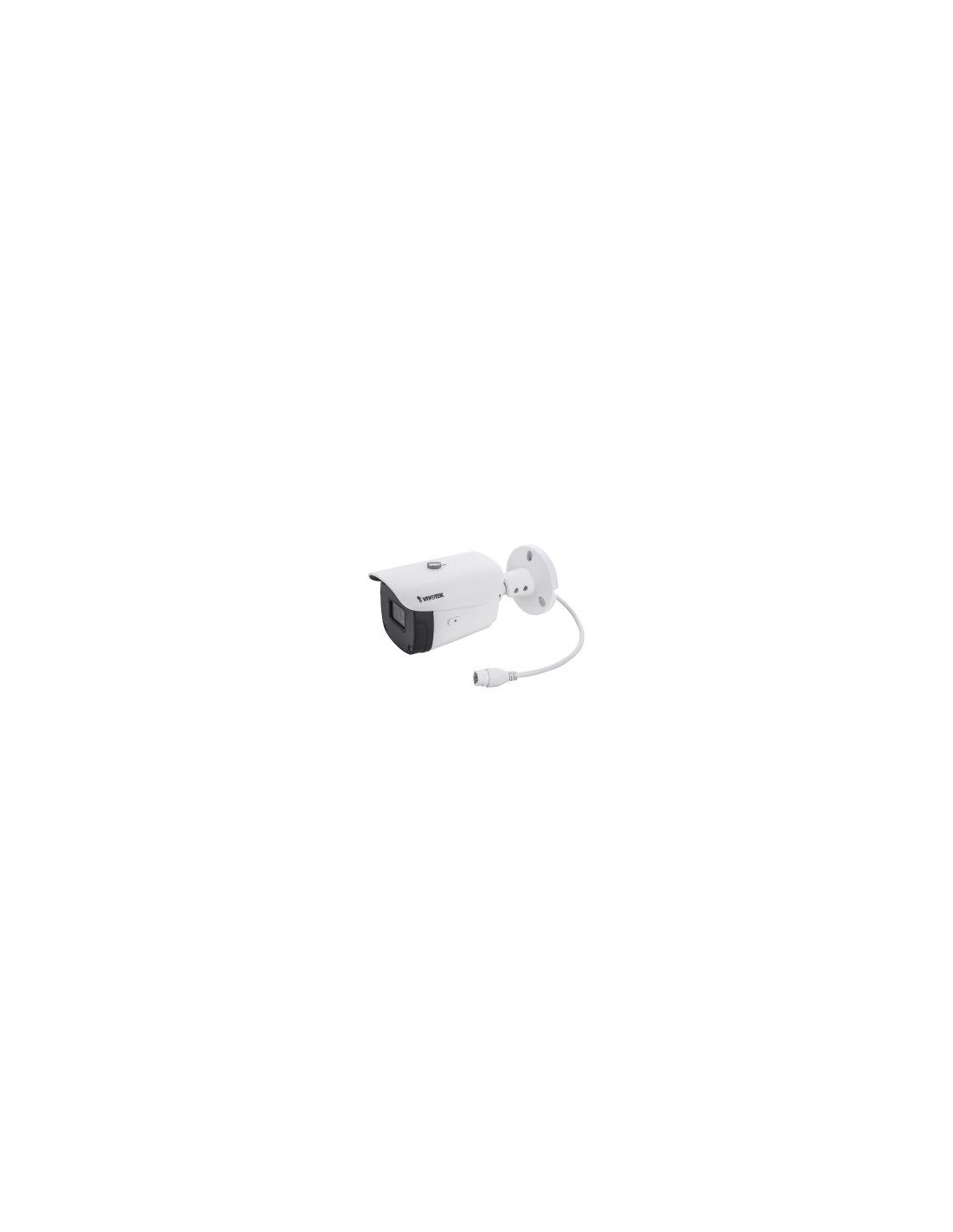

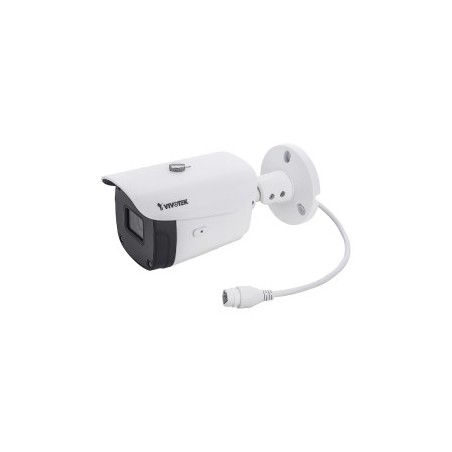

Vivotek IB9388-HT

Name: Vivotek IB9388-HT
Brand: VIVOTEK
SKU: VSVVIB9388HT

Outdoor Bullet, 5M 20fps, H.265/H.264/MJPEG, f2.8~12mm remote focal lens, D/N, IR 30m, WDR Pro, PoE, MicroSD/SDHC/SDXC, Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)

Descrizione

SPECIFICHE

Camera Features

Image Sensor: 1/2.7" Progressive CMOS

Max. Resolution: 2560x1920 (5MP)

Lens Type: Motorized, Vari-focal, Remote Focus

Focal Length: f= 2.8 ~ 12 mm

Aperture: F1.4 ~ F2.8

Iris Type: Fixed iris

Field of View: 90° ~ 30° (Horizontal)
65° ~ 23° (Vertical)
115° ~ 38°(Diagonal)

Shutter Time: 1/5 sec. to 1/32,000 sec.

WDR Technology: WDR Pro

Day/Night: Yes

Removable IR-cut Filter: Yes

IR Illuminators: Built-in IR Illuminators, effective up to 30 meters with Smart IR, IR LED*2

Minimum Illumination: 0.035 lux @ F1.4 (Color)
<0.005 lux @ F1.4 (B/W)
0 lux with IR illumination on

Tilt Range: 90°

Rotation Range: 180°

Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage: Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Built-in Installation Aids: Remote focus, remote zoom

Video

Video Compression: H.265, H.264, MJPEG

Maximum Frame Rate: 20 fps @ 2560x1920

Maximum Streams: 3 video streams (Up to 8 configurable profiles)

S/N Ratio: 67 dB

Dynamic Range: 120 dB

Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Network

Users: Live viewing for up to 10 clients

Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection: Five-window video motion detection

VADP Package: Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event

Event Trigger: Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot

Event Action: Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection

Power Input: IEEE 802.3af PoE Class 0

Power Consumption: Max. 12.95 W/9 W (IR on/off)

Dimensions: 85 x 85 x 214.5 mm

Weight: 738 g

Certifications: EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
