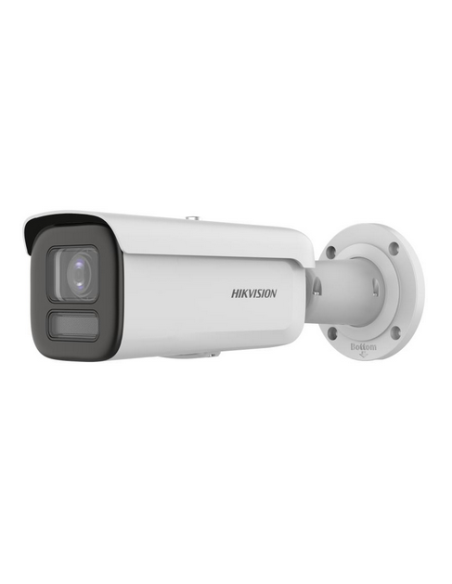

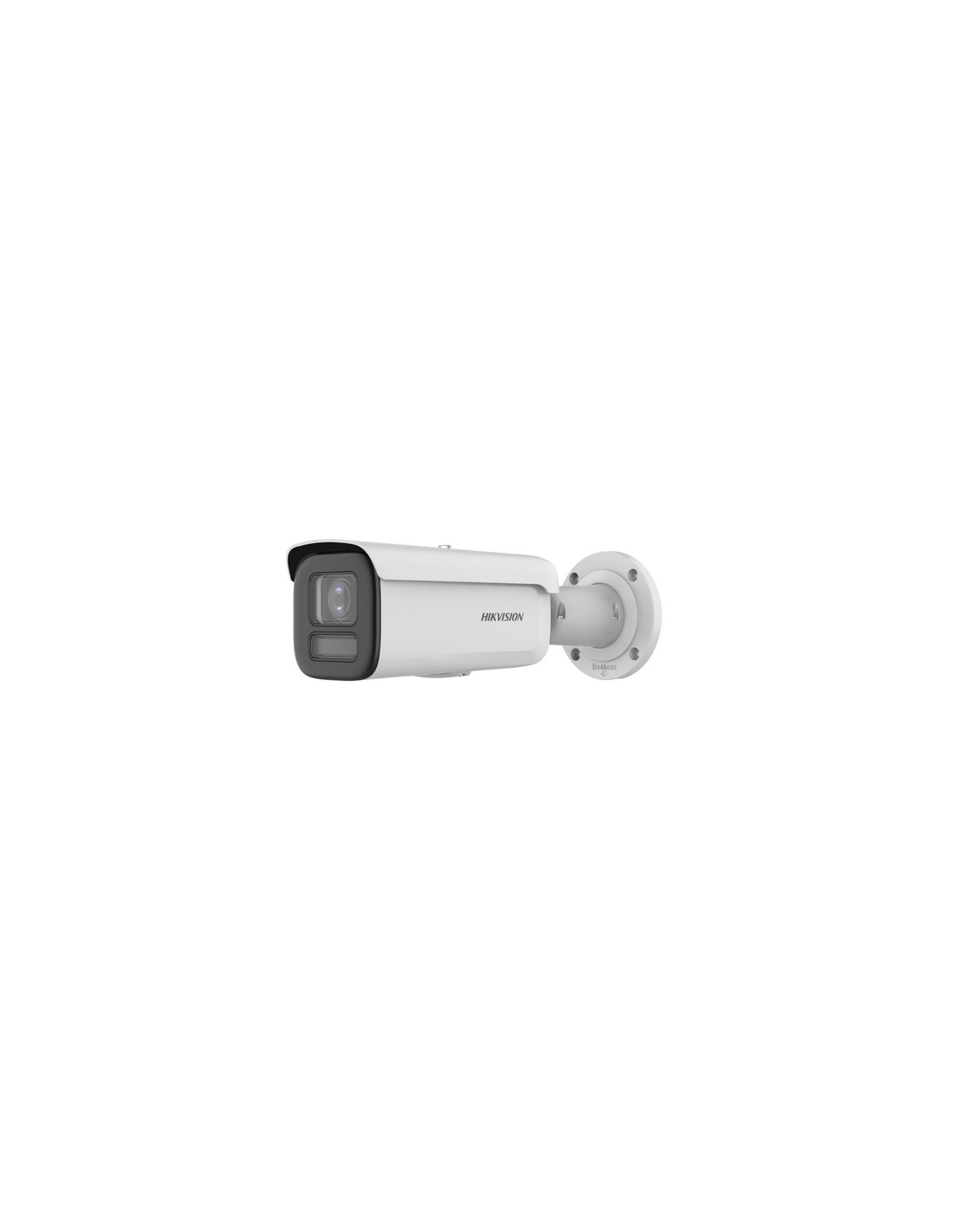

Hikvision DS-2CD2647G2HT-LIZS 2.8-12mm
Telecamera Bullet IP Immagini a colori 24/7, Risoluzione 4MP - 2688x1520, Frame rate 25 Fps (2688x1520), Sensore 1/1.8" Progressive Scan CMOS, Sensibilità 0.0005 Lux @ F1.0, AGC ON, 0 Lux con Luce bianca / IR. Day&Night IR Cut Filter, Ottica 2.8~12 mm. Compressione video H.265+ / H.265 / H.264+ / H.264. Stream video: 3. Smart Features: Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection, Human/Vehicle Detection, AcuSearch: notifica all'NVR Smart per una ricerca avanzata delle registrazioni, notifica al sw di centralizzazione, invio email. ROI. Portata LUCE BIANCA o IR: 60 m, WDR 130 dB, Slot SD microSD/SDHC/SDXC fino a 512 GB (non fornita), Audio, Allarmi . Alimentazione 12 Vcc ±25% / POE(802.3af), 14.5 W Max Temperatura di esercizio -30 °C ~ +60 °C, Grado di protezione IP67, IK10. Eco-Friendly Packaging.
- Camera
- Image Sensor 1/1.8" Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
- Lens Mount Integrated
- Iris Type Fixed
- Aperture F1.2
- Depth of Field 1 m to ∞
- DORI
- DORI
Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 m
Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
