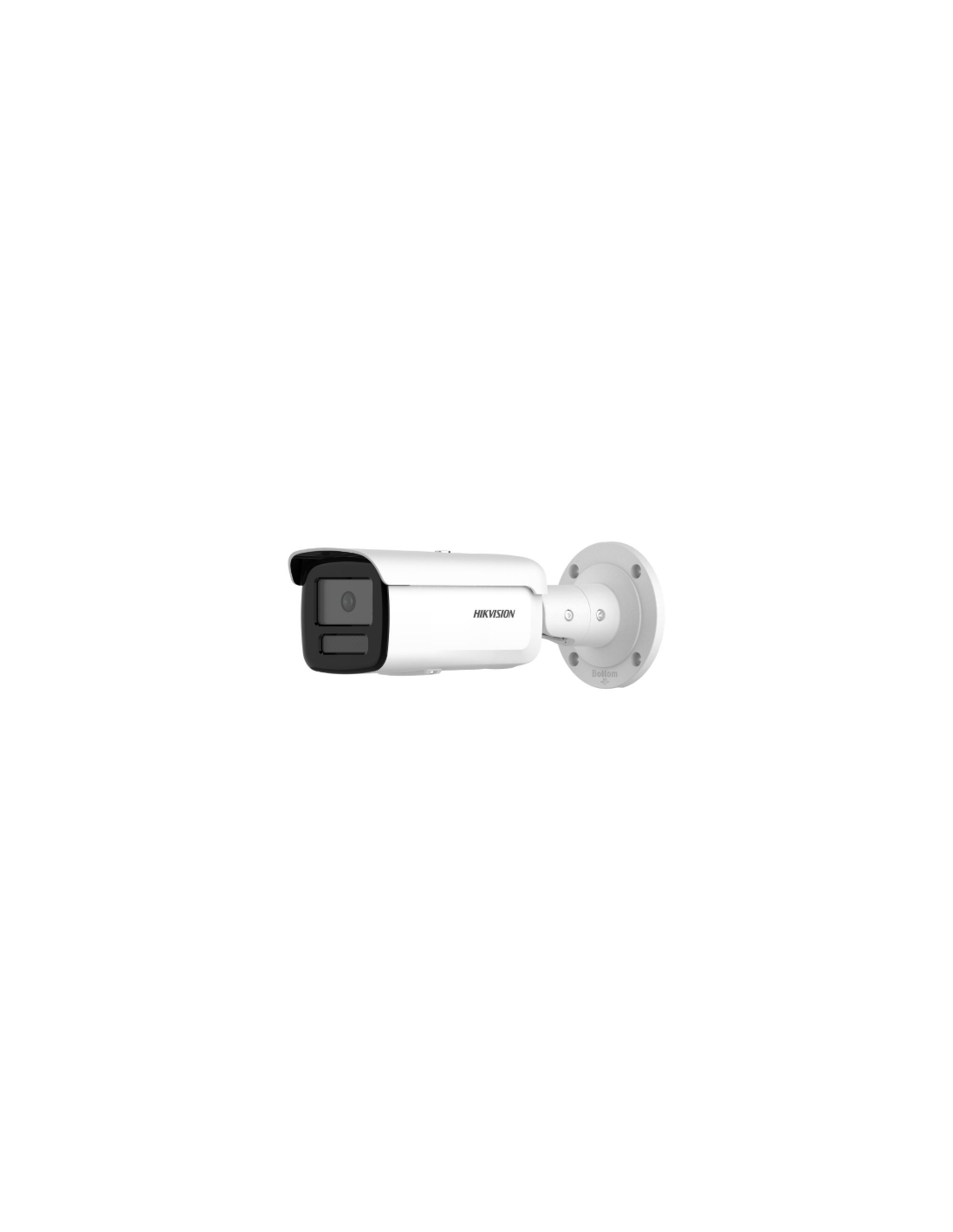

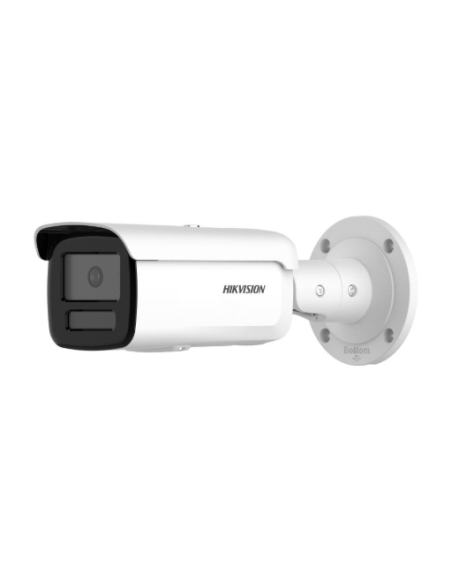

Hikvision DS-2CD2T47G2H-LI 4mm
Telecamera Bullet IP colori 24/7, Risoluzione 4MP - 2688x1520, Frame rate 25 Fps @ 2688x1520, Sensore 1/1.8” Progressive Scan CMOS. Day&Night IR Cut Filter, Ottica 4 mm, video H.265+/H.265/H.264+/H.264, Smart Features: Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection, Human/Vehicle Detection, AcuSearch: notifica all'NVR Smart per una ricerca avanzata delle registrazioni, notifica al sw di centralizzazione, invio email. ROI, Streams 3, Portata LUCE BIANCA o IR: 60 m, WDR 130 dB Slot SD Card microSD/SDHC/SDXC fino a 512 GB (non fornita). Alimentazione 12 Vcc, POE (802.3af), Max 10, 5 W Temperatura di esercizio -30 °C ~ +60 °C. Da esterno IP67.
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
- Depth of Field
2.8 mm: 2.5 m to ∞
4 mm: 3.1 m to ∞
- DORI
- DORI
2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
- Smart EventScene change detection
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9 W
- MaterialFront cover: Metal, body: Metal, bracket: Metal
- Dimension286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
- Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- WeightApprox. 1085 g (2.4 lb.)
- With Package WeightApprox. 1639 g (3.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding
