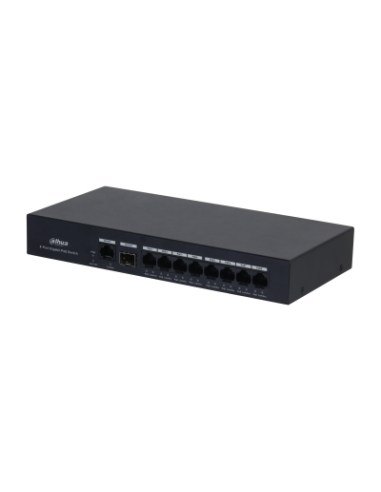

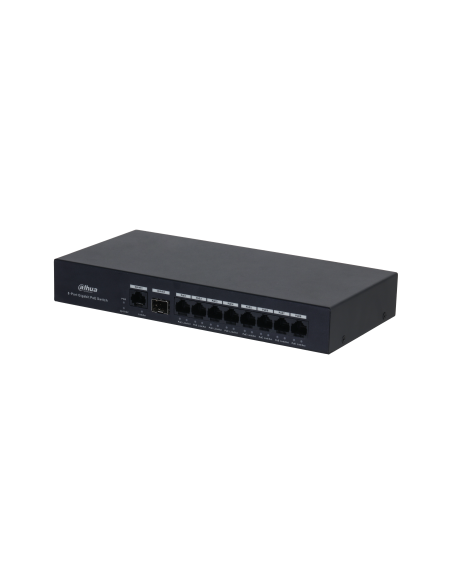

PFS3110-8GT-65

Hardware Feature

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Speed

1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × RJ–45 10/100/1000 Mbps;
Port 9: 1 × RJ–45 10/100/1000 Mbps;
Port 10: 1 × SFP 1000 Mbps

Power Supply

Built-in power supply: 100–240 VAC; 50/60 Hz; 1.5 A (maximum)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: 1.8 W
Full load: 65 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88Mpps

Packet Buffer Size

1.5 Mbit

Jumbo Frame

9,216 Byte

MAC Table Size

2K Byte

Communication Standard

IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z

Features

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Power

Port 1–8 ≤30 W;
Total ≤65 W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)

ePoE

No

Long Distance PoE Transmission

No

General

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV;
Differential mode: 0.5 kV

Net Weight

0.8 kg (1.76 lb)

Gross Weight

1.8 kg (3.97 lb)

Product Dimensions

243 mm × 118 mm × 35 mm (9.57" × 4.65" × 1.36") (L × W × H)

Packaging Dimensions

300 mm × 260 mm × 70 mm (11.81" × 10.24" × 2.76") (L × W × H)

Casing Material

Iron

Installation

Desktop mount

Certifications

CE; FCC
