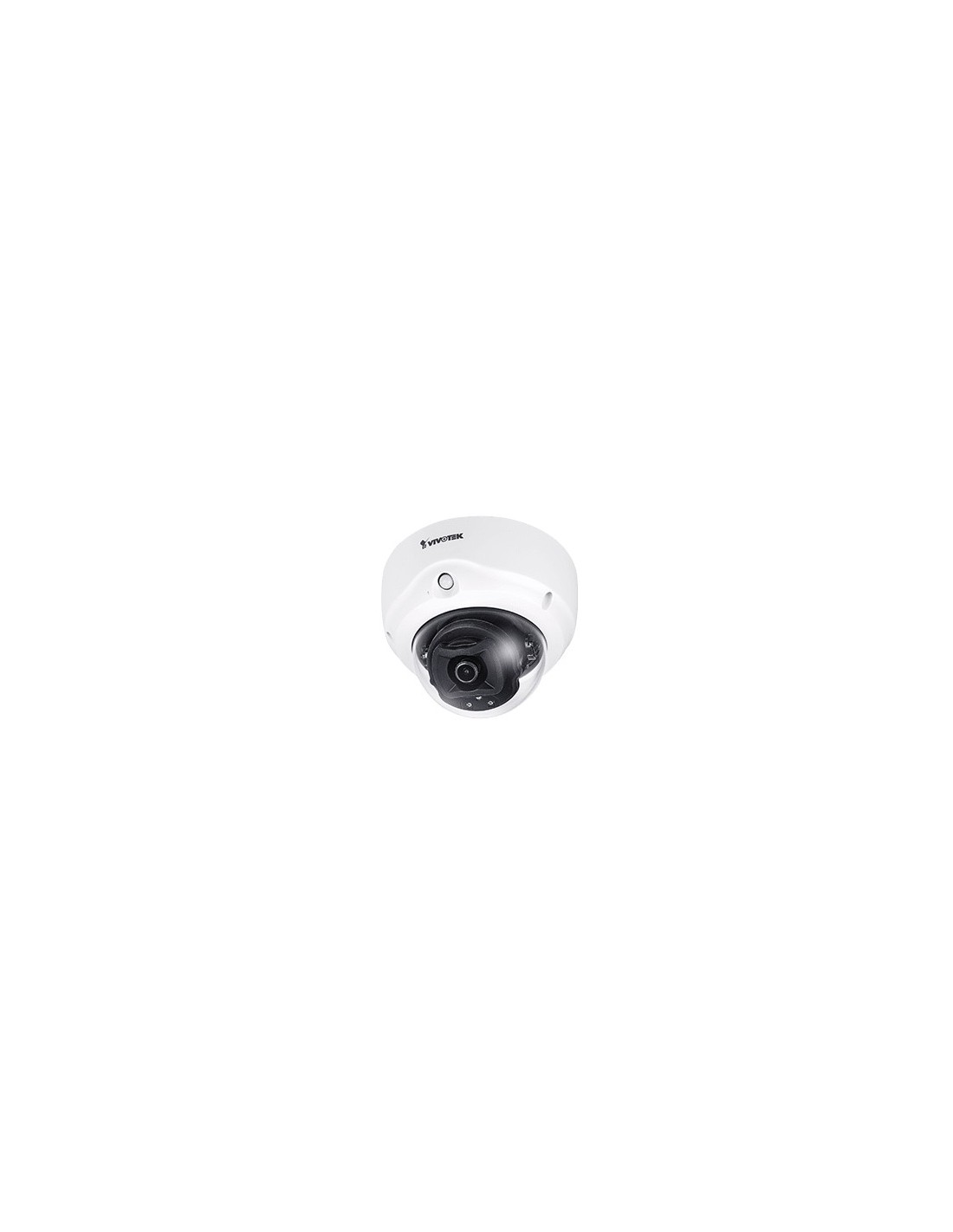

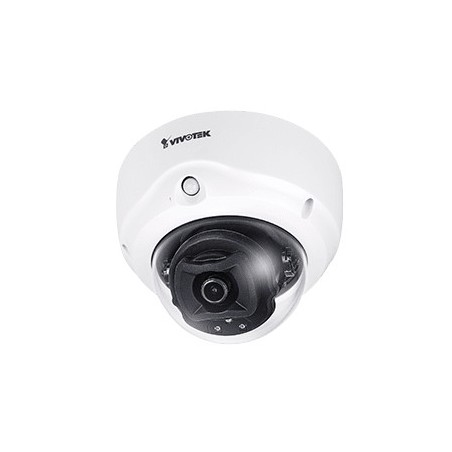

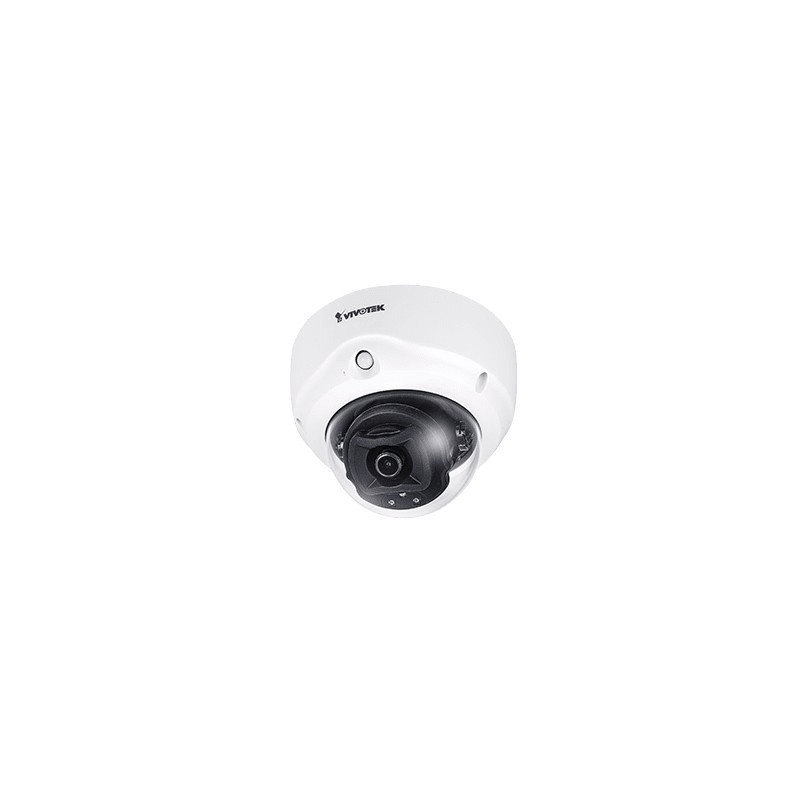

Vivotek FD9187-HT-A

Camera Features

Image Sensor

1/2.7" Progressive CMOS

Max. Resolution

2560x1920 (5MP)

Lens Type

Motorized, Vari-focal, Remote Focus

Focal Length

f = 2.7 ~ 13.5 mm

Aperture

F1.4 ~ F2.8

Iris Type

P-iris

Field of View

100° ~ 30° (Horizontal)
72° ~ 23° (Vertical)
135° ~ 38° (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4

Minimum Illumination

0.075 lux @ F1.4 (Color)
<0.01 lux @ F1.4 (B/W)
0 lux with IR illumination on

Pan Range

350°

Tilt Range

80°

Rotation Range

±175°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage

Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)

Built-in Installation Aids

Remote focus, remote zoom, CVBS

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off)

Maximum Streams

3 simultaneous streams

S/N Ratio

57 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings

General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings

Audio

Audio Capability

Two-way Audio (full duplex)

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone
External microphone input
External line output

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S supported, specification available at www.onvif.org

Solution Integration

Smart Motion Detection

Five-window video motion detection, people detection, time filter

Smart VCA

Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
*Please access https://license.vivotek.com/ to get the free trial license.

VADP Package

Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot

Event Action

Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio input
Audio output
AC 24V power input (Optional)
DC 12V power input
Digital input *2
Digital output *2
TV out

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af Class 0 PoE, DC 12V, AC 24V (Optional)
(Simultaneous Power Redundancy Supported)

Power Consumption

PoE: Max. 12 W
DC 12V: Max. 9 W
AC 24V (Optional): Max. 10.5 W

Dimensions

Ø 139 x 103 mm

Weight

538 g

Certifications

EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471); IA: BIS (IS 13252)

Operating Temperature

Starting Temperature:
0°C ~ 45°C (32°F ~ 113°F)
Working Temperature:
-10°C ~ 45°C (14°F ~ 113°F) (IR off)
-10°C ~ 40°C (14°F ~ 104°F) (IR on)

Humidity

90%

Warranty

36 months

System Requirements

Operating System

Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 11

Other Players

VLC: 1.1.11 or above

Included Accessories

Packing Contents

Quick installation guide, alignment sticker, screw pack
