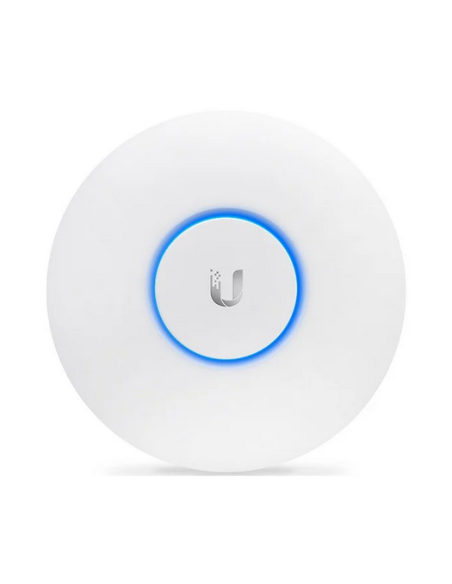

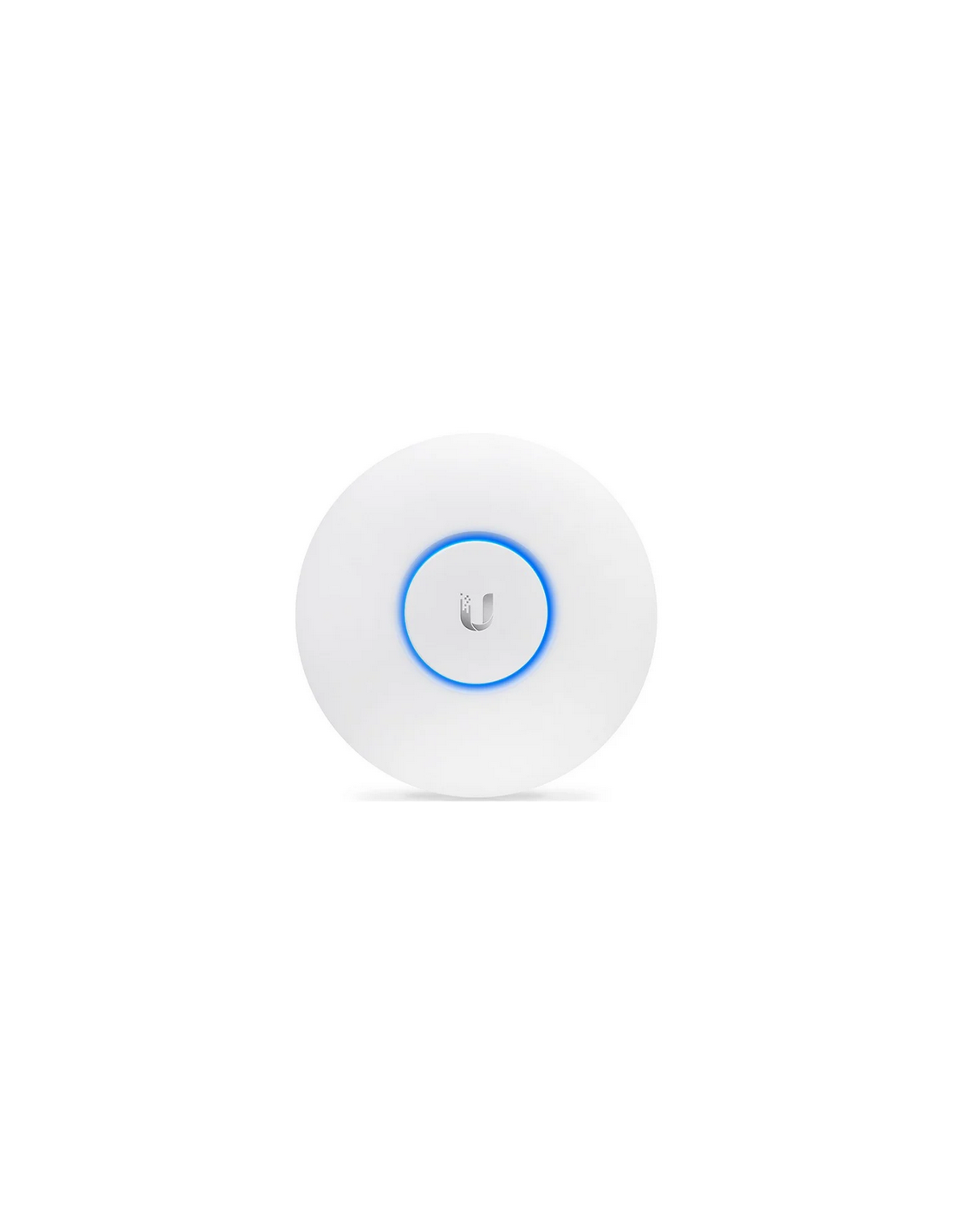

U6+

U6+

Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.



DESCRIZIONE

Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.

wifi6.svg WiFi 6

streams.svg 4 spatial streams

floorplan.svg 140 m² (1,500 ft²) coverage

connection.svg 300+ connected devices

poe.svg Powered using PoE

wifi.svg GbE uplink

SPECIFICHE

Technical Specifications
Mechanical
Dimensions Ø160 x 33 mm (Ø6.3 x 1.3")
Weight Without mount: 338 g (0.8 lb)
With mount: 413 g (0.9 lb)
Enclosure material Polycarbonate, aluminum
Mount material ABS, SGCC steel
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
23 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2
2 x 2
–
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
2402 Mbps
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
3 dBi
5.4 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Concurrent clients 300+
Software
Management application UniFi Network: Version 7.3.76 and later



VSUBU6+
