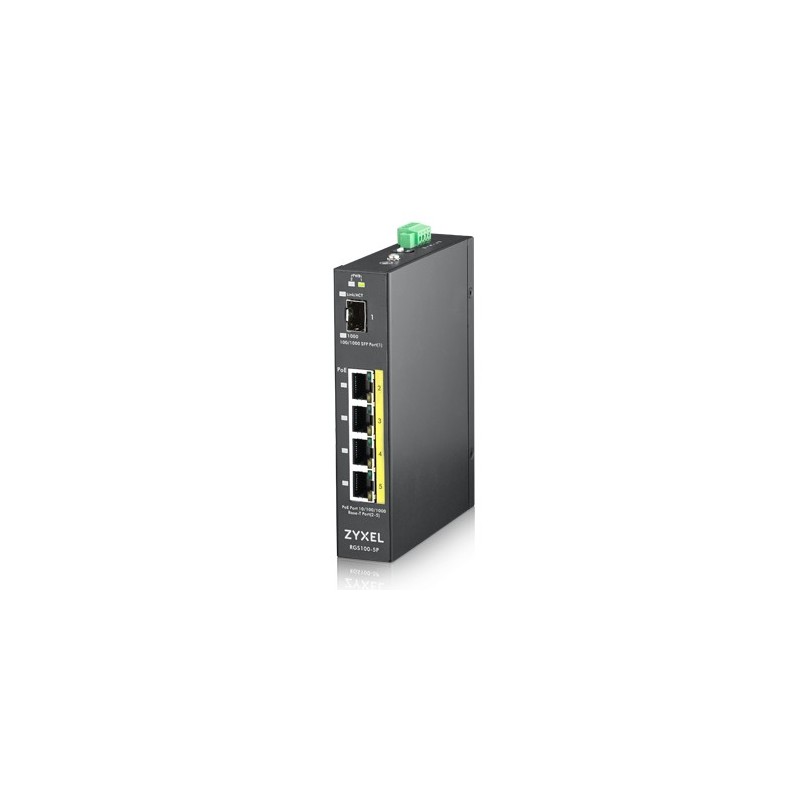

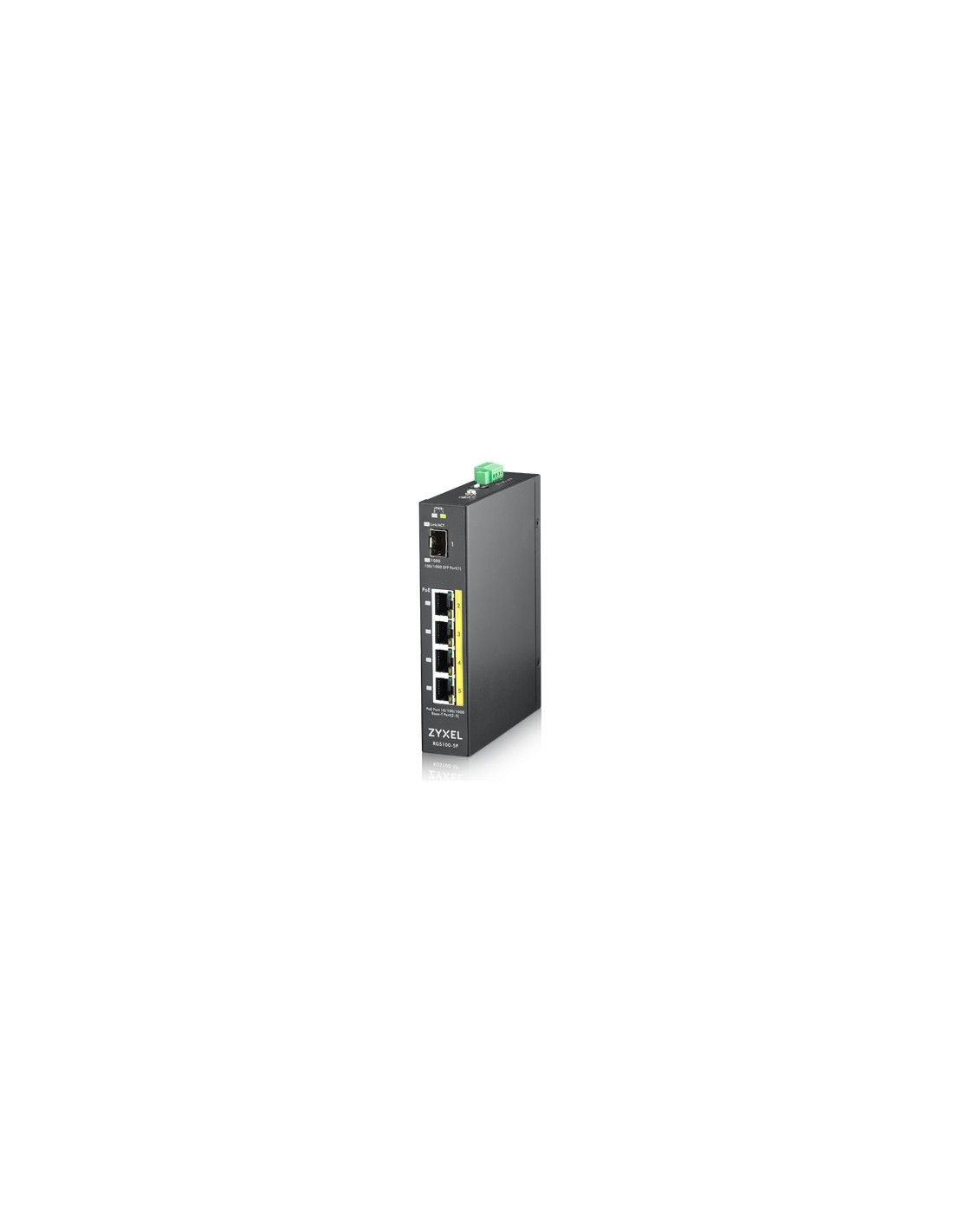

RGS100-5P - Switch 5 Porte Unmanaged, 4 porte Gigabit PoE (erogazione fino a 120 Watt) + 1 porta Gigabit SFP - DIN Rail, IP30, doppia alimentazione 12-58V DC



EasY extendibility and flexible installation

The RGS100-5P comes with four Gigabit PoE+ ports to accommodate power-hungry devices with ease and one Gigabit SFP fiber uplink which can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility. To adopt different deployments, the RGS100-5P can be installed on either a DIN rail or wall mount for efficient use of cabinet space.

Easy extendibility and flexible installation

High availability

Equipped with dual DC power inputs, the RGS100-5P is capable of high-availability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

High availability
SPECIFICHE

Model

RGS100-5P
  • 5-port GbE Unmanaged PoE Switch
Switch class
  • Unmanaged

Port Density

Total port count
  • 5
   100/1000 Mbps PoE
  • 4
   Gigabit SFP
  • 1

Performance

Switching capacity (Gbps)
  • 10
Forwarding rate (Mpps)
  • 7.44
Packet buffer (byte)
  • 0.25 M
MAC address table
  • 2 K
Jumbo frame (byte)
  • 9 K

Power

Input
  • Dual power input 12V~58VDC
Max. power consumption (watt)
  • 125
Total PoE power budget (watt)
  • 120

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.): 29.1 x 107.3 x 139/1.15 x 4.22 x 5.47

Weight (kg/lb.): 0.5/1.1

Packing

Dimensions (WxDxH)(mm/in.): 70 x 177.8 x 205/2.76 x 7 x 8.07

Weight (kg/lb.): 0.7/1.54

Included accessories
  • Wall mount kit
  • DIN-rail mounting kit
