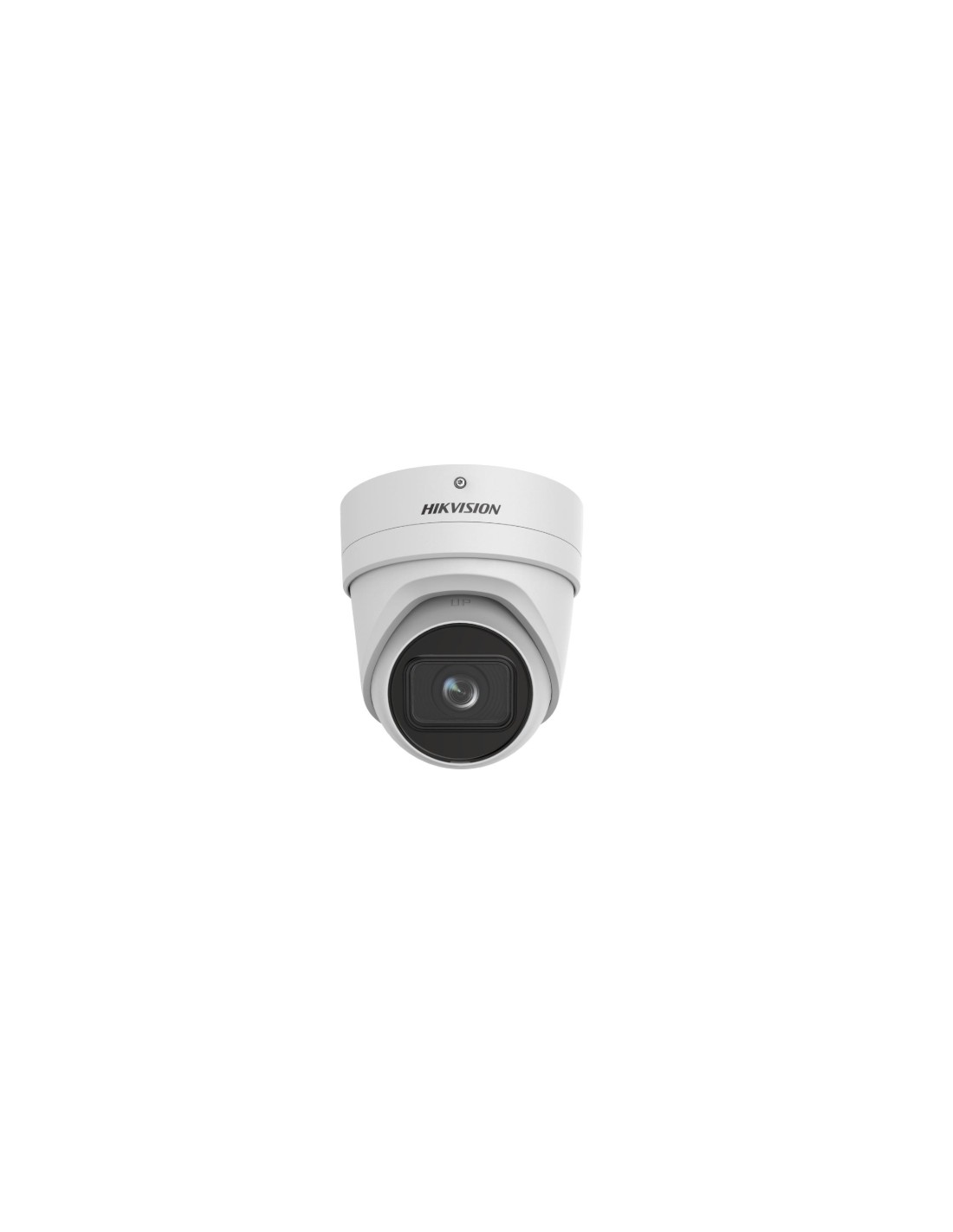

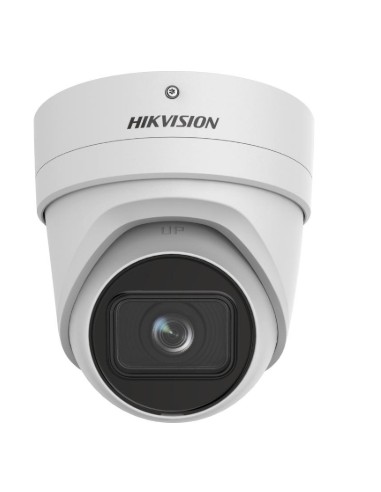

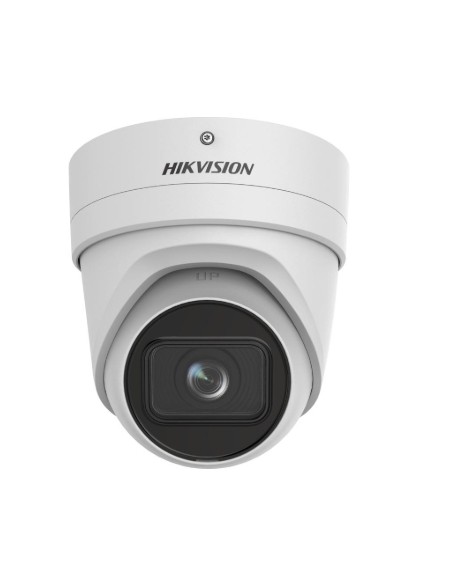

HIKVISION DS-2CD2H46G2-IZS 2.8-12mm
Telecamera Turret IP Immagini a colori 24/7, Risoluzione 8MP - 3840x2160, Frame rate 25 Fps @ 3840x2160, Sensore 1/1.8” Progressive Scan CMOS, Sensibilità: 0.0008 Lux @ F1.0, AGC ON, 0 Lux con Luce bianca / IR. Day&Night IR Cut Filter, Ottica 2.8 mm, Compressione video H.265+/H.265/H.264+/H.264, Stream: 3. Smart Features: Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection, Human/Vehicle Detection, Scene change detection, AcuSearch: notifica all'NVR Smart per una ricerca avanzata delle registrazioni, notifica al sw di centralizzazione, invio email. ROI. Portata LUCE BIANCA o IR: 30 m, WDR 130 dB. Slot SD Card microSD/SDHC/SDXC fino a 512 GB (non fornita). Microfono e altoparlante incorporati, Audio In/Out: 1/1. Allarmi In/Out: 1/1. Luce stroboscopica e allarme acustico. Alimentazione 12 Vcc, POE (802.3af), ≤ 10.5 W. Temperatura di esercizio -30 °C ~ +60 °C. Da esterno IP67. Eco-Friendly Packaging.
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-sstream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD slot, up to 512 GB
- Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
- Reset KeyYes
- Event
- Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Deep Learning Function
- Face CaptureYes
- General
- Power
12 VDC ± 25%, 0.92 A, max. 11 W, two-core terminal block, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- DimensionØ135.8 mm × 145.5 mm (Ø5.4" × 5.8")
- Package Dimension170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1")
- WeightApprox. 1075 g (2.4 lb.)
- With Package WeightApprox. 1525 g (3.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
