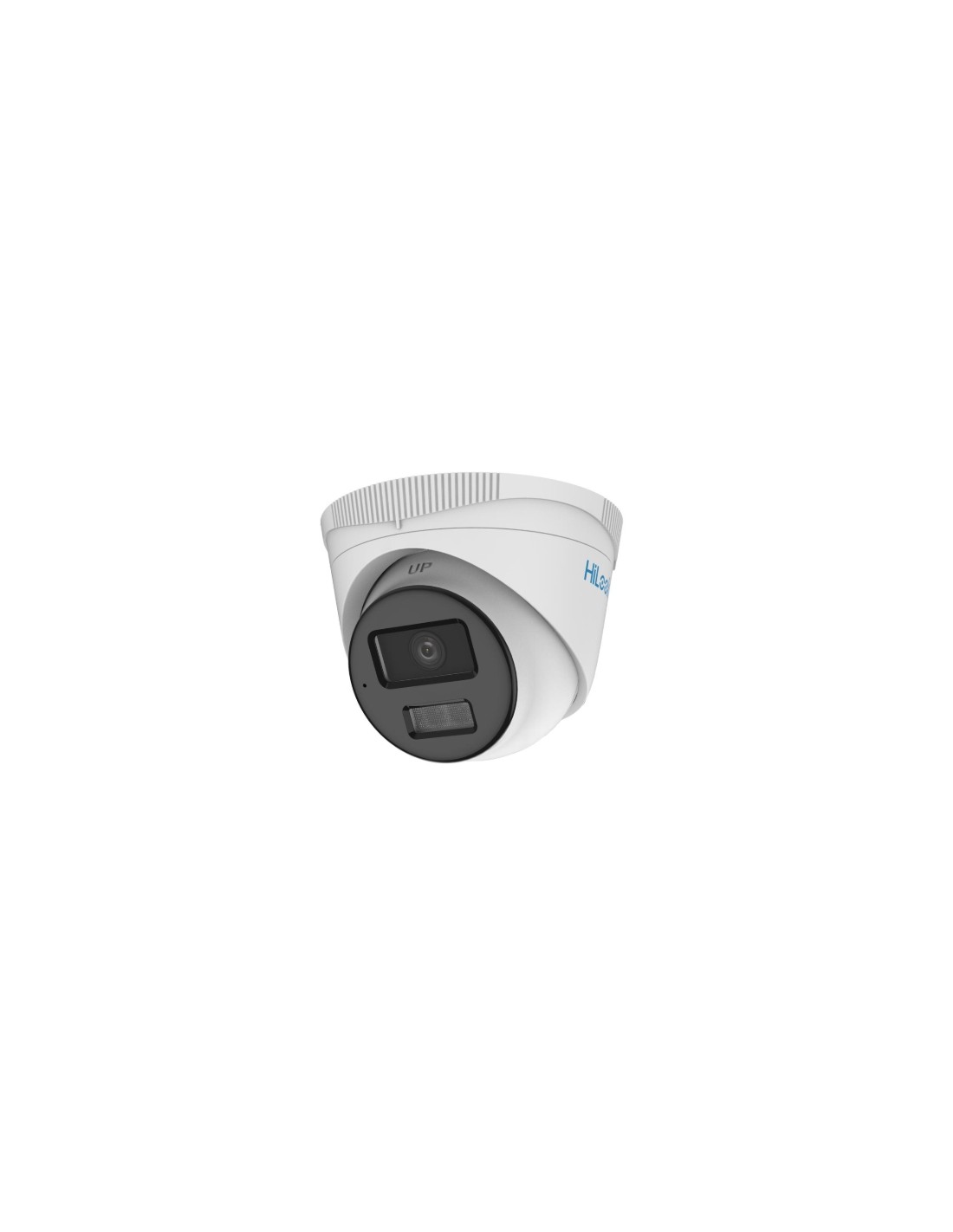

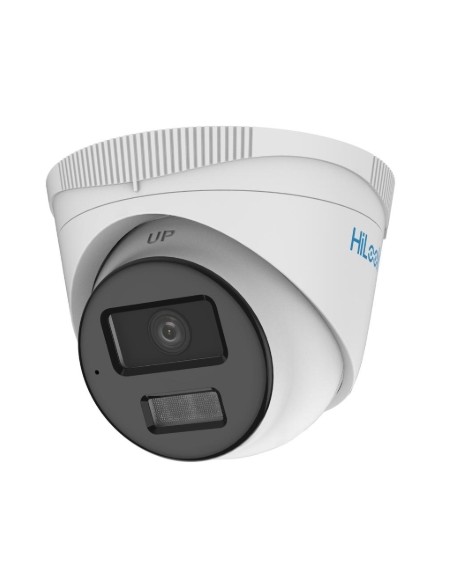

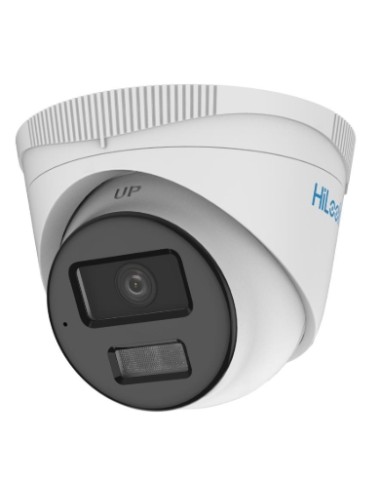

IPC-T249HA-LU 2.8mm
Telecamera Turret IP Immagini a colori 24/7, Risoluzione 8MP - 3840x2160, Frame rate 25 Fps @ 3840x2160, Sensore 1/1.8” Progressive Scan CMOS, Sensibilità: 0.0008 Lux @ F1.0, AGC ON, 0 Lux con Luce bianca / IR. Day&Night IR Cut Filter, Ottica 2.8 mm, Compressione video H.265+/H.265/H.264+/H.264, Stream: 3. Smart Features: Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exit Detection, Human/Vehicle Detection, Scene change detection, AcuSearch: notifica all'NVR Smart per una ricerca avanzata delle registrazioni, notifica al sw di centralizzazione, invio email. ROI. Portata LUCE BIANCA o IR: 30 m, WDR 130 dB. Slot SD Card microSD/SDHC/SDXC fino a 512 GB (non fornita). Microfono e altoparlante incorporati, Audio In/Out: 1/1. Allarmi In/Out: 1/1. Luce stroboscopica e allarme acustico. Alimentazione 12 Vcc, POE (802.3af), ≤ 10.5 W. Temperatura di esercizio -30 °C ~ +60 °C. Da esterno IP67. Eco-Friendly Packaging.
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T),ISAPI,SDK
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,HiLookVision
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in MicrophoneYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP,notify surveillance center,send email,trigger capture
- General
- Power
12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- MaterialMetal & Plastic
- DimensionØ112 mm × 82 mm (Ø4.41" × 3.23")
- Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- WeightApprox. 375 g (0.8 lb.)
- With Package WeightApprox. 610 g (1.3 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat, anti-banding, mirror, password protection,password reset by email
